Touchscreen Temperature Controllers
CTI Series

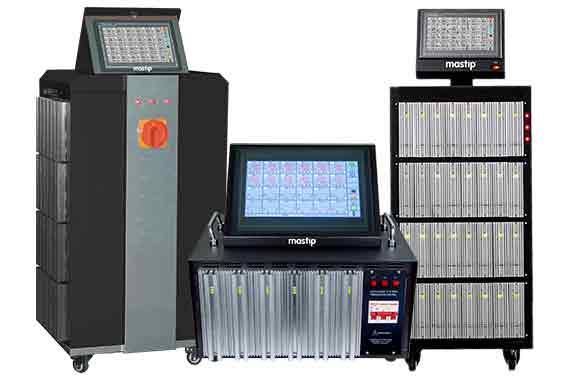

The CTI controller series has 4 different models of mainframes depending on the number of zones required. These include CTI-40 (max zones 12), CTI-100 (max zones 32), CTI-200 (max zones 80), and CTI-300 (max zones 120).
Access to all user serviceable parts, such as fuses, are done through the front of the controller by loosening the upper and lower screws on each heat sink and removing the modules. The connectors for the mold-power and thermocouple cables, and the connectors for valve gate control cables, are located at the rear of the mainframe.
The CTI temperature controllers can be connected to either 3-phase 4-wire Y / Δ type (200-240Vac) or 3-phase 5-wire Y type (380-415Vac) mains power supplies.
Technical Information
-
Technical Specifications
Model CTI-40 CTI-100 CTI-200 CTi-300 User Interface Full colour LCD Touch Screen Display Size 7.0" 7.0"/10.2" 10.2" Max. Total Zones 12 32 80 120 Max. Temp Zones 12 32 80 120 Max. Sequential Zones 24 24 24 24 Power Supply 3-Ph+E (4 wire) 200-240Vac 3-Ph+N+E (5 wire) 380-415Vac Working Conditions 0~55℃ (32~131℉), 10~80%RH (No condensing) -
Features
Cabinet HMI Temperature only, Sequential Valve Gate only, or Combination of both Full colour LCD touch screen Max. 120 zones English/Spanish/Chinese CE compliant Fixed on mainframe or Stand-alone Control Modules Alarms & Protection Control module Thermocouple broken /reversed /shorted 2-zone per temperature module
(15 Amp per zone)Heater broken /shorted /oversize 6-gate per Sequential Valve Gate module Temperature high / low
Product Information

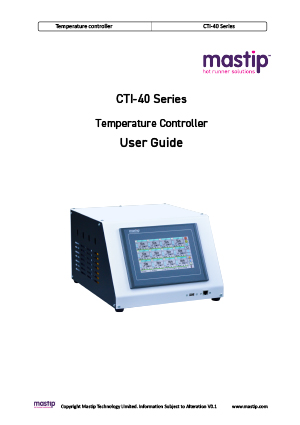

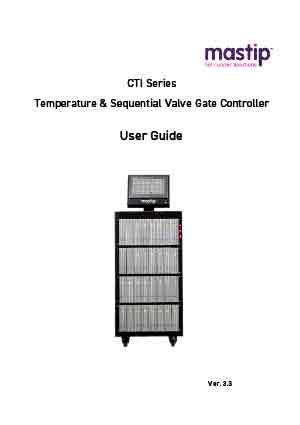

You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
