Modular Temperature Controllers
TM10 and TM20 - Automatic closed-loop distributor and temperature controlling system

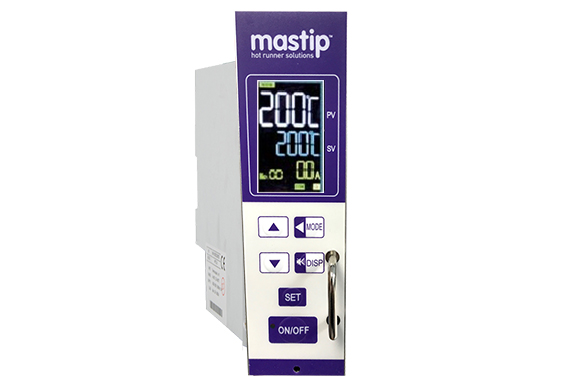

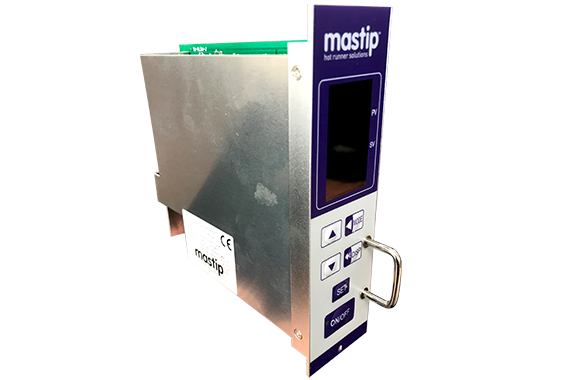

The TM range offers simple, user friendly units that are compatible with most leading hot runner brands. TM10 is available with an LED display, while the TM20 has an LCD Display and also offers future proof technology of RS485 communication.
Both units are designed as a closed-loop power distributor and temperature controlling system, proving users with premium temperature control capabilities.
TM10/TM20 incorporate heavy duty connectors (rated 10A or 16A), used to connect with the mold by mold-power and thermocouple cables. Other features include built-in cooling fans, circuit breakers and power input cable. Neon indicators illuminate after power on. There is a comprehensive warning system to include fuse blowout, over load, thermocouple open/reverse, temperature, heater fault, high load etc.
Technical Information
-
Technical Specifications
Mains Input Power AC250V (50/60 Hz) Injection Single Input Power Supply DC24V, AC220V Solenoid Output Power Supply Single voltage, 100mA / Zone Operating Temperature Range 0ºC to 55ºC, (32℉~131℉) Operation Modes Auto PID, Manual Automatic Input Voltage Yes Sensor Type J or K Thermocouple Operating Humidity 10~80%, non-condensing Storage Temperature -20℃~70℃ (-4℉~158℉) Measurement Accuracy ±0.25%F.S. -
Features
No. Name Default Settings 1 Display Unit 3-digit red LED / 4-digit green LED (TM10)
LCD (TM20)2 Remote Standby Control Optional 3 Gate Output Type DC24V or Customised 4 Operating Mode Mode A 5 Delay Time 4.0 s 6 Open Time 6.0 s Alarms Fuse blowout, Triac breakdown, Overload, T/C 7 Time Range 0.0~99.9s
Product Information
You can download the datasheets for the catalogue as a PDF here. Please fill out your details to download the files.
-
Meticom TM10 User Guide.pdf
-
Meticom TM20 User Guide.pdf
-
System Selection Guide.pdf
