Standard Manifold Systems

Manifold systems to suit all your moulding requirements

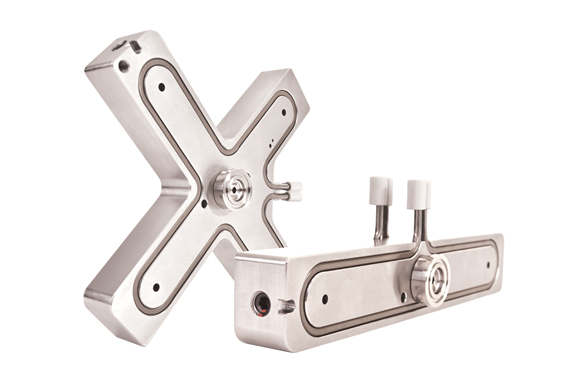

Mastip's experienced teams can design and manufacture manifold systems to suit all your moulding requirements. All Mastip manifolds are designed to deliver a uniform melt to each nozzle, ensuring cavity-to-cavity consistency. This is achieved through natural balancing of the ﬂow channels and ensuring constant temperature profiles are maintained across the manifold block. Small cavity or high cavity systems, simple single level or complex multi-level stack systems, thermal gate or valve gate systems, Mastip can provide you with a Manifold system to meet your requirements in standard high quality mould base steel or stainless steel plates.

Inquire

Technical Information

Standard Layouts, Exceptional Results

Mastip has an extensive range of standard or customized manifold designs that ensure cavity-to-cavity consistency through the normal or rheological balancing of flow channels.

Each manifold incorporates durable, high quality components that deliver fast cycle times, precise gate control and superior quality parts.
Durable, Long-lasting Components

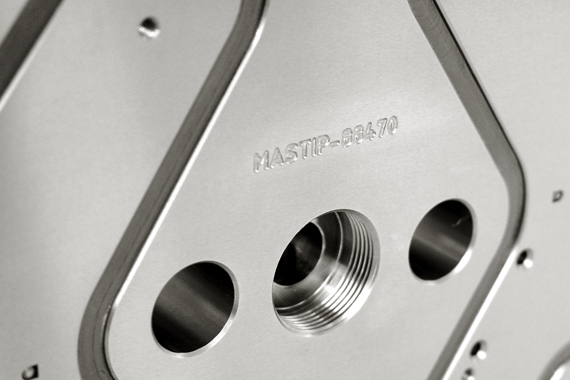

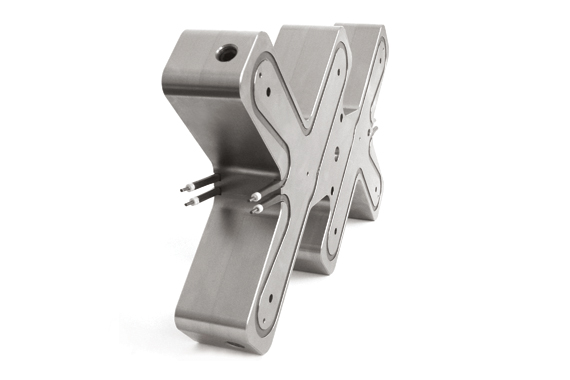

All manifolds are equipped with superior components including pressed-in heaters, ceramic connectors and high quality mould base or stainless steel plates, enabling them to perform under the most demanding applications and conditions.

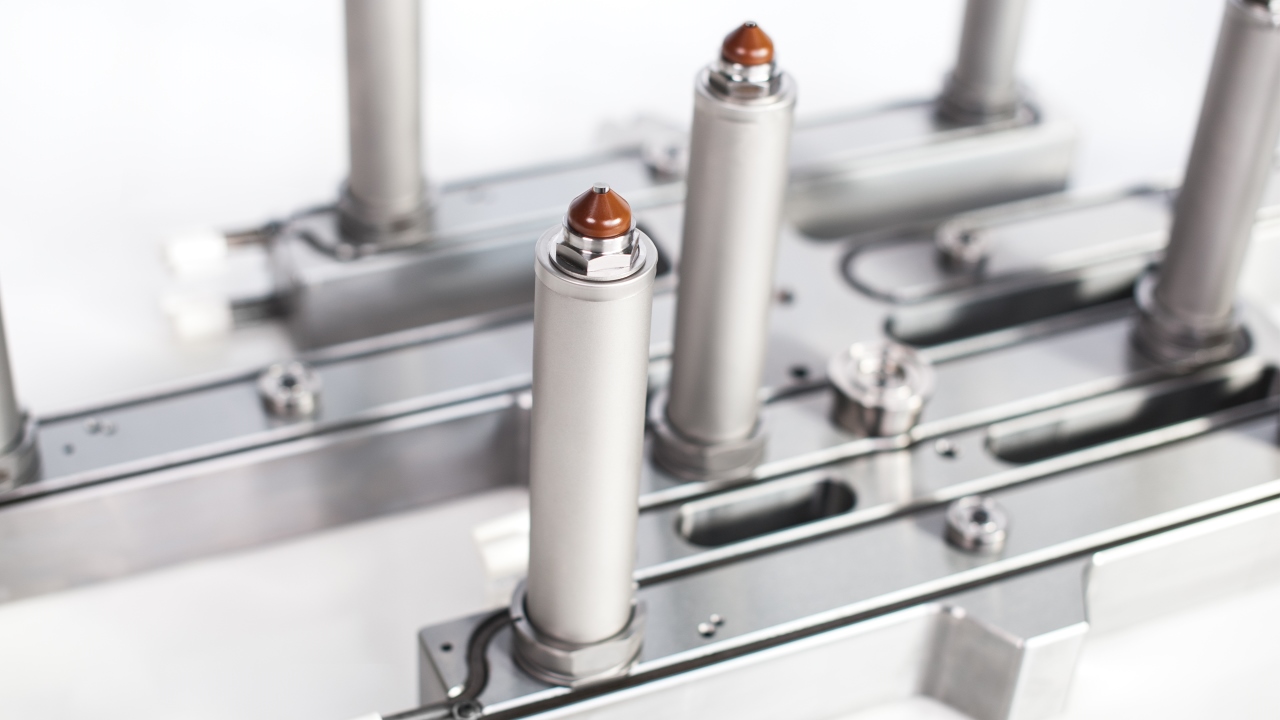

Mastip's manifold range is further complimented by the industry leading X-Range nozzles and the extensive range of tip and nut combinations to deliver high performing, durable solutions able to meet the demands of the most abrasive and difficult to mould resins.
Designed, Manufactured and Tested

Every manifold goes through extensive design and analysis to ensure the following:
- optimized melt delivery
- improved production efficiencies
- perfect cavity-to-cavity filling
- excellent gate quality
